| Product name: |

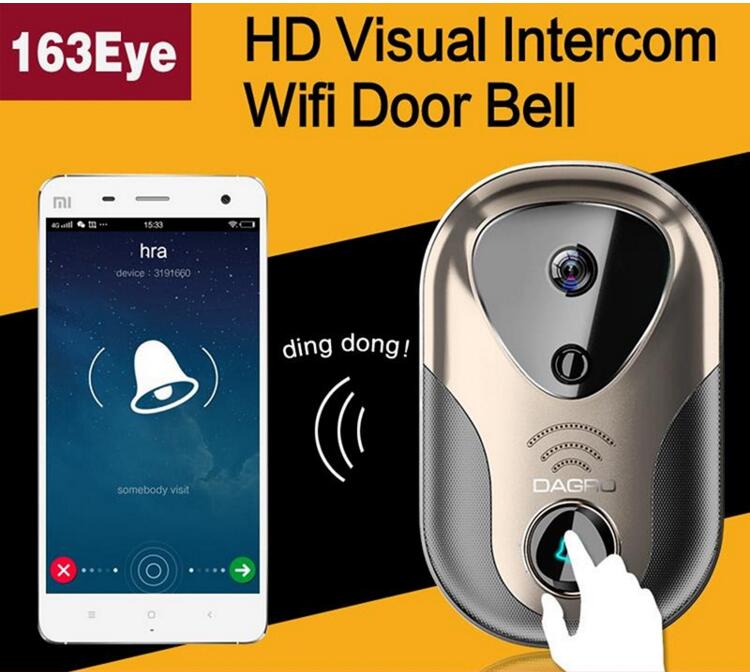

P2P wifi network HD doorbell |
| Product model: |
YB-1901 |
| technical parameter |
|
| Processor: |
3518E+SC1145 |
| Platform: |
163eye.cc |
| Operating system: |
Embedded LINUX operating system |
| Image sensor: |
1/4 HD CMOS 1 million pixel CMOS sensor |
| Video standard: |
NTSC PAL |
| Video format: |
HD (1280*720P) VGA (640*480P) |
| Video coding: |
H.264 |
| Video frame rate: |
1-30 frame |
| Video mode: |
Manual video recording, time recording, alarm recording |
| Video playback mode: |
Mobile client + PC client |
| Audio input and output: |
Input:built-in microphone 38DB; output:built-in 8Ω2W speaker |
| Built in lens: |
2.8MM optional configuration |
| Infrared night vision effect: |
the photosensitive resistance induction switch; the LED lamp night vision 10 meters |
| Focusing method: |
Manual |
| Local storage |
Support MicroSD inserted 32GB card, support 24 hours of video or video alarm |
| Support multiple protocols: |
TCP/UDP、IP、HTTP、SMTP、DHCP、DDNS、UPNP、NTP、ONVIF、RTSP |
| Wifi: |
Support IEEE 802.11b/g/n |
| Image rotation: |
Mirror / upside down |
| Video control: |
Support |
| Motion detection: |
Support |
| Alarm action: |
The alarm bell /Email/ mobile phone client push |
| Firmware upgrade: |
Remote upgrade through the network |
| System interface: |
one RJ45 10/100M adaptive interface,1 TF interface,1 DC power interface |
| Reserved interface: |
1 network interface, 1 electromagnetic lock interface |
| Supply voltage: |
12V1A |
| Working temperature: |
0℃~55℃ |
| Working environment: |
indoor |
